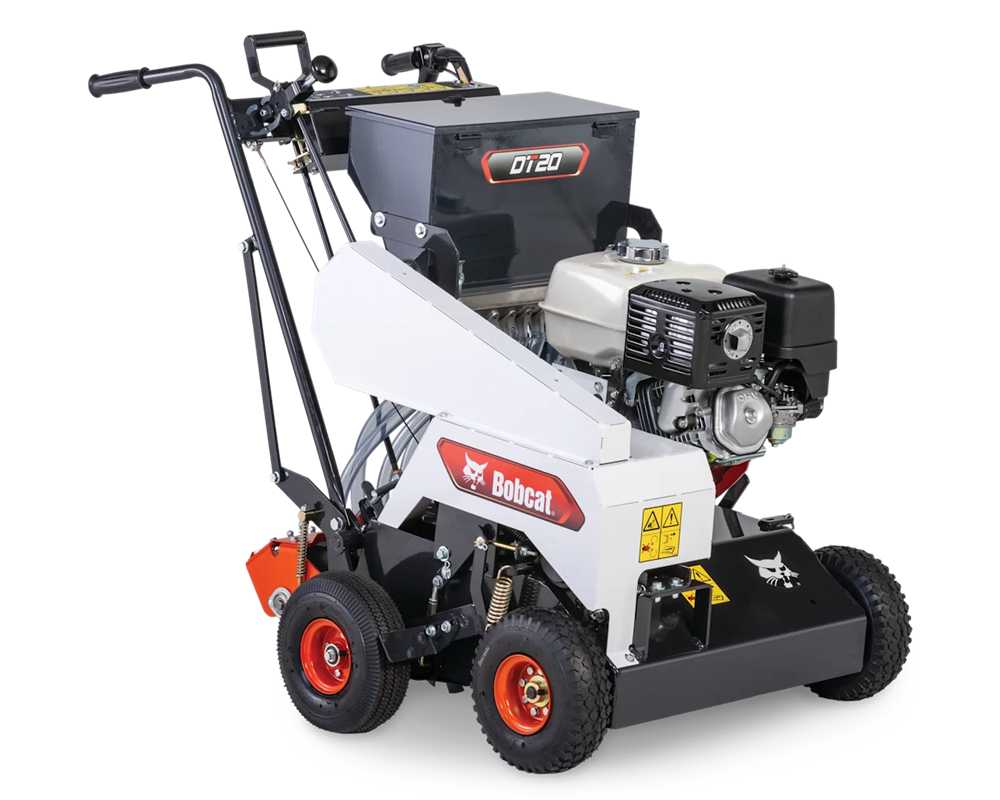

Ryan / Bobcat DT20 Overseeder
Heavy-duty and built to perform, the Bobcat® DT20 places seeds directly into soil slits for fast germination and unmatched seed-to-soil contact, aeration, and overseeding.
- Overseed with confidence. Seed flow rate is easily controlled right from the operator’s station and stops automatically when the reel is raised.
- Adjust durable cutting blades down to a depth of .25 in. while seeding at variable rates for different grass varieties and applications.
- Experience maximum germination with curve-shaped discs that place seeds directly into soil slits for unmatched seed-to-soil contact.
- Finish jobs without feeling exhausted with self-propelled operation, delivering a consistent ground speed that makes for better results.
- Independent ground and reel drive options with a transport lever make it easy to move around the jobsite.
- Overseeder with dethatching capabilities through a simplified transition process to exchange flail reels between the functionality.
- Cover 18,700 square feet per hour with a 19 in. working width
- Without any tools, easily change between five different reel types
- Self-propelled operation
Financing available for major purchases! (Items with serial numbers)
Learn more…
Contact your Sales Rep for Fleet Pricing
|
7524472
|
DT20 Walk-Behind Overseeder Honda GX390
|
0226
|
$16,325.00
|
|
544260A
|
1/32" Blades, 1/2" spacing
|
0226
|
$1,115.00
|
|
544261A
|
1/32" Blades, 1" spacing
|
0226
|
$990.00
|
|
544262A
|
1/16" Blades, 1" spacing
|
0226
|
$990.00
|
|
544265A
|
1/16" Blades, 11/2" spacing
|
0226
|
$925.00
|
|
544269A
|
1/8" Flail Blades, 1" spacing
|
0226
|
$1,495.00
|
All prices, descriptions, and specifications subject to change
without notice. Items may not be exactly as illustrated.
Contact the Lawnmower Hospital today for more information or to make a purchase.
Contact Us
Specifications
| Engine | Honda® GX390
|
| Power | 11.7 hp (8.6 kW)
|
| Displacement | 23.7 cu in (389 cc)
|
| Fuel Capacity | 1.6 gal (6.1 L)
|
| Oil Capacity | 1.16 qt (1.1 L)
|
| Drive | 4L-section V-belt to front wheels by gear box and sealed roller chain
Triple 3V-section V-belts engine to reel
|
| Clutch | Spring-loaded belt tightener
|
| Gearbox | 22:1 reduction
|
| Seeding System | Seed is dropped directly into soil slits via seed delivery tube and covered in soil by disc system
|
| Seeding Blade Reel | (10) 8-point high-carbon, heat treated blades at 2 in (51 mm) spacing
|
| Seed Hopper Capacity | 40 1b (18.1 kg)
|
| Operating Width | 19 in (483 mm)
|
| Slicing Depth | Up to 0.25 in (6 mm) below ground
|
| Reel Speed | 3200 RPM
|
| Reel Height Adjustment | Micrometer screw; adjustable up to 1.25 in (32 mm) for blade wear
|
| Optional Flail Blade Reel | Hardened high-carbon steel blades: 1/8 in (3 mm) at 1 in (25 mm) spacing
|
| Optional Fixed Blade Reel | Hardened high-carbon steel blades:
1/32 in (1 mm) at 1/2 in (13 mm) spacing
1/32 in (1 mm) at 1 in (25 mm) spacing
1/16 in (2 mm) at 1 in (25 mm) spacing
1/16 in (2 mm) at 1-1/2 in (38 mm) spacing
|
| Productivity | Single Pass: 80%, 18700 sq ft/hr (1737 m2/hr)
Double Pass: 80%, 9400 sq ft/hr (873 m2/hr)
|
| Frame | Welded 7-gauge steel
|
| Front Wheel(s) | (2) 4.10/3.50 - 4 turf-tread pneumatic drive wheels
|
| Rear Wheel(s) | (2) 4.10/3.50 - 4 sawtooth-tread pneumatic
|
| Length | 50 in (1270 mm)
|
| Width | 35.5 in (902 mm)
|
| Height | 44 in (1118 mm)
|
| Weight | 453 lb (205 kg)
|
