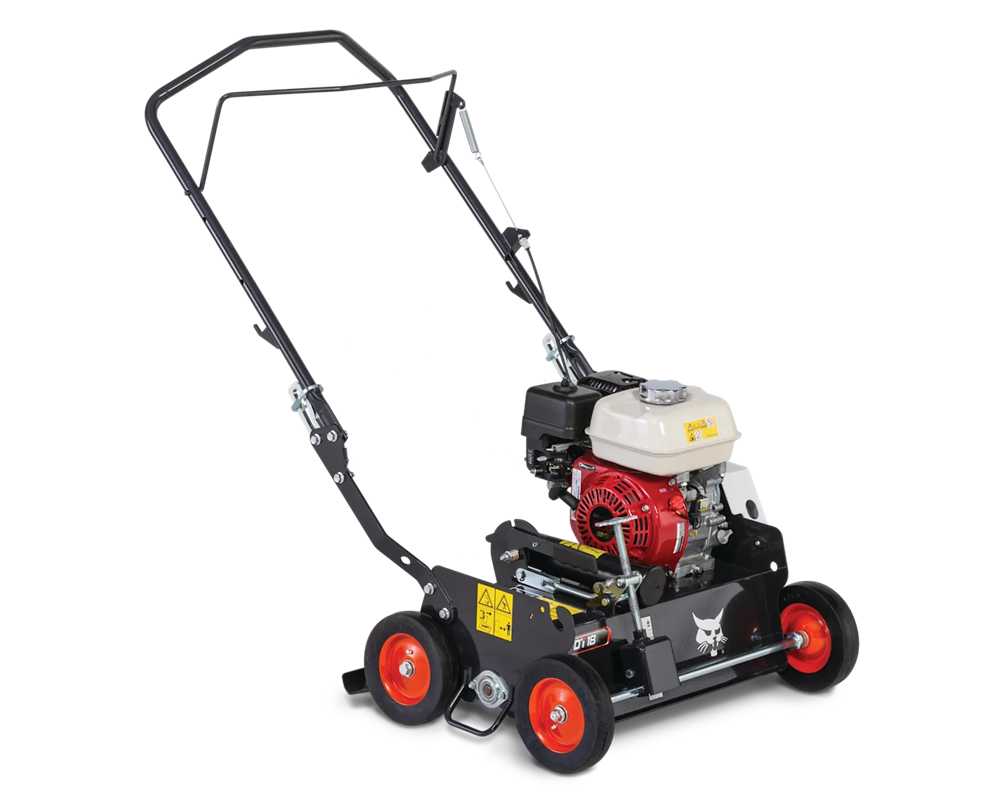

Ryan / Bobcat DT18 Power Rake
Built for years of reliable operation, the Bobcat® DT18 is designed with one focus in mind: efficient and effective dethatching.
- Ergonomic, multi-position handle is designed for different user heights and folds for compact storage and transport.
- Quickly hop from job to job by lifting the reel off the ground and locking it for transport mode.
- Easy to replace and maintain, the bubble shield prevents thatch from building up under the deck – minimizing unnecessary downtime.
- Easy-on, easy-off seed box accessory features handle mounted controls to regulate seed flow – allowing the DT18 to do double duty.
- Choose from spring, fixed, or flail reels to best suit your turf.
- 18 in. working width
- Ergonomic, multi-position handle
- Off-the-ground transport mode
- Bubble shield prevents thatch buildup
- Optional overseeding box
Spring Tine, Fixed Blade & Seed Box available upon request.
Financing available for major purchases! (Items with serial numbers)
Learn more…
Contact your Sales Rep for Fleet Pricing
|
7884846
|
DT18 Walk-Behind Dethatcher, Honda GX160, Flail Blade
7523226 with M6171-P01-C01 reel package
|
0226
|
$3,550.00
|
|
970962
|
Kit, Flail Reel DT, 18 - Replacement or alternative
|
0226
|
$1,060.00
|
|
970964
|
Kit, Spring Tine Reel DT, 18 - Replacement or alternative
|
0226
|
$950.00
|
|
970959
|
Kit, Fixed Reel DT, 18 - Replacement or alternative
|
0226
|
$1,025.00
|
All prices, descriptions, and specifications subject to change
without notice. Items may not be exactly as illustrated.
Contact the Lawnmower Hospital today for more information or to make a purchase.
Contact Us
Specifications
| Engine | Honda® GX160
|
| Power | 4.8 hp (3.5 kW)
|
| Displacement | 9.9 cu in (163 cc)
|
| Fuel Capacity | 0.82 gal (3.1 L)
|
| Oil Capacity | 0.61 qt (0.58 L)
|
| Drive | A-section V-belt from engine to reel
|
| Clutch | Spring-loaded belt tightener
|
| Flail Blade Reel | Hardened, high-carbon steel 1/8 in (3 mm) blades at 1 in (25 mm) spacing
|
| Fixed Blade Reel | Hardened, high-carbon steel 1/8 in (3 mm) blades at 2 in (51 mm) spacing
|
| Spring Tine Reel | 0.109 in (2.76 mm) diameter springs at 0.75 in (19 mm) spacing
|
| Operating Width | 18 in (457 mm)
|
| Slicing Depth | Fixed Blade: Up to 0.25 in (6 mm) below ground
|
| Reel Speed | 2700 RPM
|
| Reel Height Adjustment | Micrometer screw; adjustable up to 1.25 in (32 mm) for blade wear
|
| Frame | Welded 12-gauge steel
|
| Front Wheel(s) | (2) 8 in x 1.75 in smooth semi-pneumatic
|
| Rear Wheel(s) | (2) 8 in x 1.75 in smooth semi-pneumatic
|
| Optional Seed Box: Capacity | 0.76 cu ft (21.5 L), or 0.61 bu
|
| Optional Seed Box: Weight | 30 lb (14 kg)
|
| Length | 55.5 in (1410 mm)
|
| Width | 27 in (686 mm)
|
| Height | 39.0 in (991 mm)
|
| Weight | 131 lb (60 kg)
|
