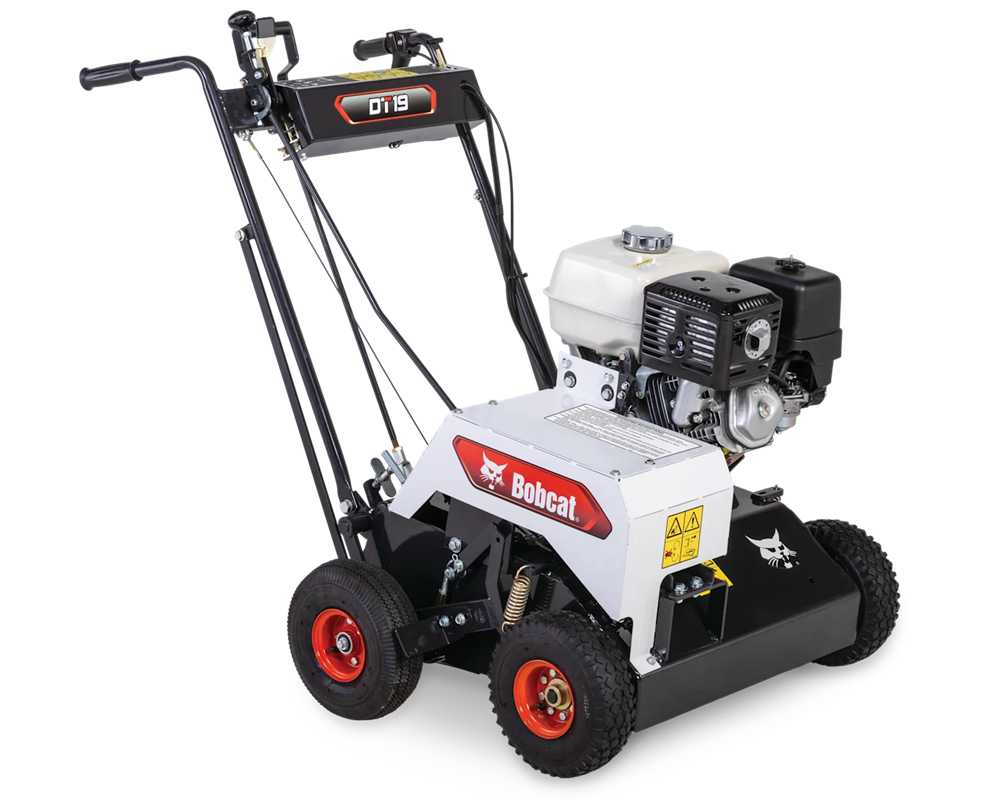

Ryan / Bobcat DT19 Detatcher
The Bobcat® DT19 dethatcher is built for heavy-duty turf renovation and verticutting.
- The Bobcat DT19 is built for heavy-duty turf renovation and verticutting. With easy-to-use cutting depth controls and interchangeable reels/cutting blades for optimal efficiency, the self-propelled, walk-behind DT19 allows you to cover up to 18,700 square feet per hour.
- A simple height adjustment lets you fine-tune your dethatcher's slicing depth.(Exact depths depend on blade type used.)
- Adjust the throttle and set cutting depth right from the user-friendly operator’s station.
- Experience a new world of versatility by cutting and seeding at the same time.
- Finish jobs without feeling exhausted with self-propelled operation, delivering a consistent ground speed that makes for better results.
- Cover 18,700 square feet per hour with a 19 in. working width
- Without any tools, easily change between five different reel types
- Self-propelled operation
Financing available for major purchases! (Items with serial numbers)
Learn more…
Contact your Sales Rep for Fleet Pricing
|
7523790
|
DT19 Detatcher Honda GX390 – (one of the following reels is required with the [urchase of the DT19)
|
0226
|
$10,950.00
|
|
544260A
|
1/32" Blades, 1/2" spacing
|
0226
|
$1,115.00
|
|
544261A
|
1/32" Blades, 1" spacing
|
0226
|
$990.00
|
|
544262A
|
1/16" Blades, 1" spacing
|
0226
|
$990.00
|
|
544265A
|
1/16" Blades, 11/2" spacing
|
0226
|
$925.00
|
|
544269A
|
1/8" Flail Blades, 1" spacing
|
0226
|
$1,495.00
|
All prices, descriptions, and specifications subject to change
without notice. Items may not be exactly as illustrated.
Contact the Lawnmower Hospital today for more information or to make a purchase.
Contact Us
Specifications
| Engine | Honda® GX390
|
| Power | 11.7 hp (8.6 kW)
|
| Displacement | 23.7 cu in (389 cc)
|
| Fuel Capacity | 1.6 gal (6.1 L)
|
| Oil Capacity | 1.16 qt (1.1 L)
|
| Drive | 4L-section V-belt to front wheels by gear box and sealed roller chain
Triple 3V-section V-belts engine to reel
|
| Clutch | Spring-loaded belt tightener
|
| Gearbox | 22:1 reduction
|
| Flail Blade Reel | Hardened high-carbon steel blades: 1/8 in (3 mm) at 1 in (25 mm) spacing
|
| Fixed Blade Reel | Hardened high-carbon steel blades:
1/32 in (1 mm) at 1/2 in (13 mm) spacing
1/32 in (1 mm) at 1 in (25 mm) spacing
1/16 in (2 mm) at 1 in (25 mm) spacing
1/16 in (2 mm) at 1-1/2 in (38 mm) spacing
|
| Operating Width | 19 in (483 mm)
|
| Slicing Depth | Fixed Blade: Up to 0.25 in (6 mm) below ground
|
| Reel Speed | 3200 RPM
|
| Reel Height Adjustment | Micrometer screw; adjustable up to 1.25 in (32 mm) for blade wear
|
| Frame | Welded 7-gauge steel
|
| Front Wheel(s) | (2) 4.10/3.50 - 4 turf-tread pneumatic drive wheels
|
| Rear Wheel(s) | (2) 4.10/3.50 - 4 sawtooth-tread pneumatic
|
| Length | 50 in (1270 mm)
|
| Width | 35.5 in (902 mm)
|
| Height | 44 in (1118 mm)
|
| Weight | 376 lb (171 kg) (without reel)
|
