Stinger Applicators

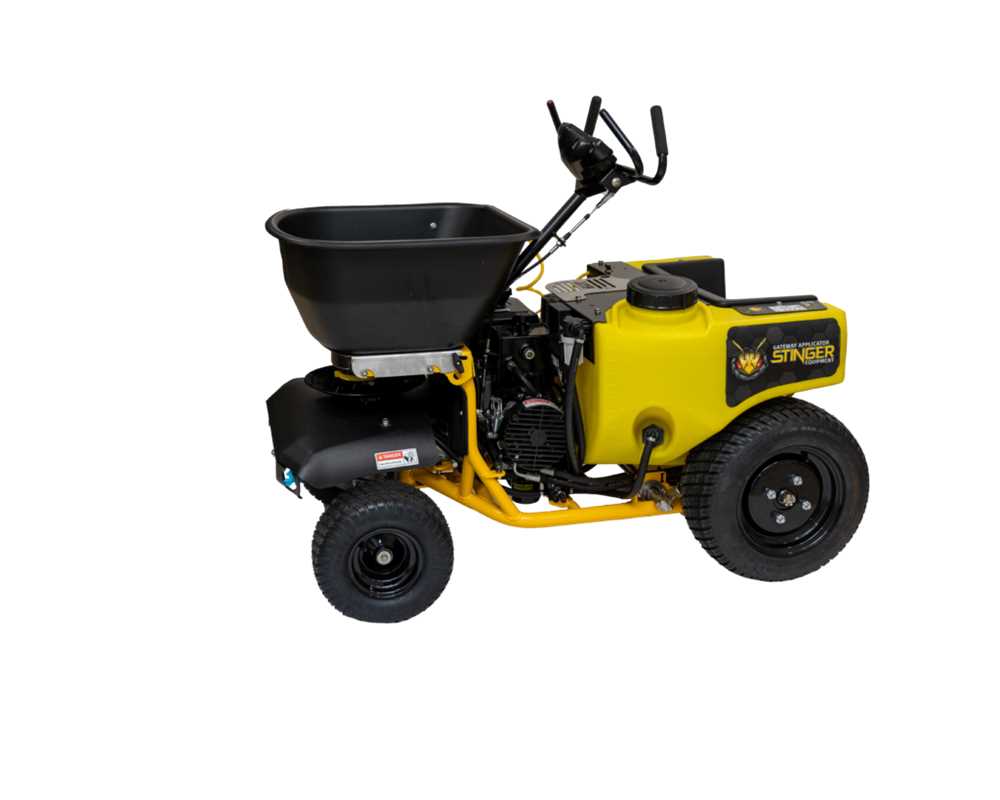

Gateway Applicator
Gateway Applicator
Gateway Applicator
- Ground metered spread and spray.
- Apply product at any speed accurately.
- One touch control operation
- No belts, no cables, no leaking check valves, no levers….just simple
- and reliable
- Commercial direct drive pump and motor drive system
- 42” turning radius
- Stainless frame with powder coat finish
- Tires 18” drive tires and 13” steering tires
- Calibration in 5 min or less
- One touch wide to narrow, left to right application pattern
- Momentary spot spray
- 100% Stainless tube frame with powder coat finish
Financing available for major purchases! (Items with serial numbers)
Learn more…
Contact your Sales Rep for Fleet Pricing
|
90-2205
|
Gateway Applicator - Kohler
|
0426
|
$23,045.00
|
All prices, descriptions, and specifications subject to change
without notice. Items may not be exactly as illustrated.
Contact the Lawnmower Hospital today for more information or to make a purchase.
Contact Us
Specifications
| Dimensions:
|
| Width | 35" Inches (0.89 Meter)
|
| Height | 43" Inches (1.09 Meter)
|
| Length | 56" Inches (1.42 Meter)
|
| Weight
|
| Empty | 385 Pounds (174.6 Kg)
|
| Spreader Full, Sprayer Tank Empty | 535 Pounds (242.7 Kg)
|
| Spreader Empty, Sprayer Tank Full | 572 Pounds (259.5 Kg)
|
| Spreader Full, Sprayer Tank Full | 722 Pounds (327.5 Kg)
|
| Operator Controls - One Touch Control Operation
|
| Steering and Drive | Forward/Reverse Speed Control, Engine Throttle
|
| Spreader | Spreader Gate Open/Close/Wide/Narrow/Right/Left, Impeller Speed
|
| Sprayer | Full Width (Wide) On/Off, Trim Width (Narrow) On/Off, PSI
|
| Production Rates
|
| Spreading and/or Spraying | 4,000 Sq. Ft./Minute - 240,000 Sq. Ft./Hour
|
| Spreader Hopper Capacity | Approx 2.4 Cubic Feet - 150 Pounds
|
| Minimum/Maximum Spread Width
|
| Wide Spread | 16' to 24' Feet (5.49 to 6.7 Meter)
|
| Trim Spread | 4' to 10' Feet (1.2 to 3 Meter)
|
| Sprayer Tank Capacity | 22 US Gallons - 183.6 Pounds of Liquid
|
| Minimum/Maximum Spray Width
|
| Wide Spray | 8' to 10' Feet (2.44 to 2.74 Meter) 9' Effective
|
| Trim Spray | 3' to 5' Feet (0.91 to 1.22 Meter)
|
| Momentary Spot Spray | Yes
|
| General
|
| Engine | Kohler CH270 - 7HP - 208cc (with 18 amp charging and electric start)
|
| Fuel Tank Capacity | 1.1 Gallons (4.0 liters) / 3.5 hours of continuous run-time
|
| Hydraulic System Capacity | Up to 2 qts synthetic 15W-50 or until site glass is 1/2 full
|
| Drive System | Variable Speed with Brake and Freewheel Control
|
| Tires | Front/Steering - 13 x 6.50-6 Rear/Driving - 18 x 6.50-8
|
| Maximum Transport or Operating Ground Speed | 5.5 MPH (8.85 Km/h)
|
| Turning Radius | 42" (3.5 ft radius) 7 Foot Circle (Center Line)
|
| Maximum Slope Angle of Operation | 15° is recommended (may vary depending on terrain and operator's skill/comfort level)
|
