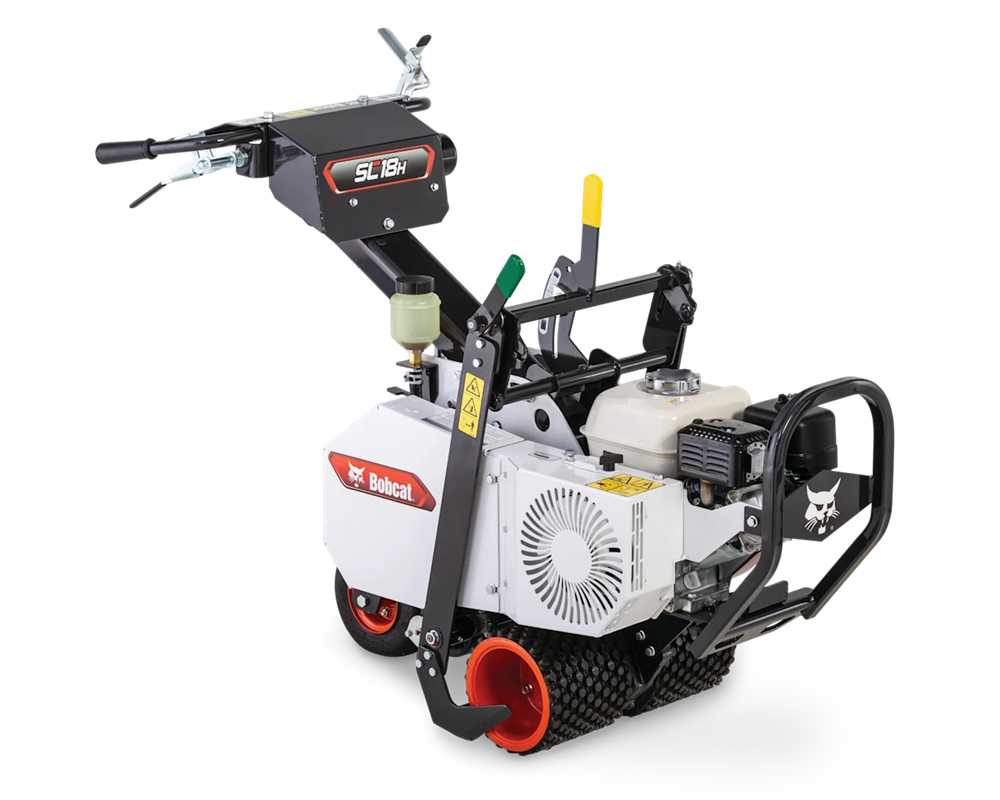

Ryan / Bobcat Hydrostatic Drive Sod Cutter
Legendary performance meets new transmission technology for easier-to-control, smoother, and more stable sod cutting.
- A user-friendly, color-coded interface makes it easy to adjust blade depth and angle for precise cutting – no matter the soil condition.
- Unlock the pneumatic rear caster wheel to easily and tightly maneuver around landscaping, then lock it for unmatched precision on straightaways.
- Featuring ultra-low vibration technology, the rubber isolation mount absorbs shock and machine vibration before they ever reach your hands, saving your arms from fatigue.
- Hydrostatic, variable-speed transmission
- Ultra-low vibration technology
- Easy steer technology
- User friendly operation
- Simple depth and blade-angle adjustment
Financing available for major purchases! (Items with serial numbers)
Learn more…
Contact your Sales Rep for Fleet Pricing
|
7885828
|
NA SC18H Sod Cutter, Honda GX160
7521551 with M6132-P01-C01 blade package
|
0226
|
$11,165.00
|
|
7885830
|
NA SC24H Sod Cutter, Honda GX160
7521551 with M6132-P01-C02 blade package
|
0226
|
$12,655.00
|
All prices, descriptions, and specifications subject to change
without notice. Items may not be exactly as illustrated.
Contact the Lawnmower Hospital today for more information or to make a purchase.
Contact Us
Specifications
| Honda® Engine | Honda® GX160
|
| Honda® Power | 4.8 hp (3.5 kW)
|
| Honda® Displacement | 9.9 cu in (163 cc)
|
| Honda® Fuel Capacity | 0.82 gal (3.1 L)
|
| Honda® Oil Capacity | 0.61 qt (0.58 L)
|
| Drive | A-section belt engine to hydrostat.
Power transfered through enclosed oil lubricated gearcase
Chain reduction to the drive wheels and blade
|
| Transmission | Danfoss® BDU-10STM
|
| Gearbox | 0.25 in (6 mm) thick cast iron housing
|
| Forward Speed | Up to 4 mph (6.4 kph)
|
| Reverse Speed | Up to 2 mph (3.2 kph)
|
| Blade | Heat-treated steel
|
| Cutting Width | 18 in (457 mm) / 24 in (610 mm)
|
| Cutting Depth | Adjustable up to 2.5 in (64 mm)
|
| Blade Speed | 1225 oscillations/min
|
| Depth Adjustment | Locking lever releases to desired depth
|
| Front Wheel(s) | (2) 8 in (203 mm) vulcanized knob tread cast iron drive wheels
|
| Rear Wheel(s) | (1) 9 in x 3.5 in - 4 in caster wheel
|
| Length | 52.5 in (1,331 mm)
|
| Width | 25 in (635 mm)
|
| Height | 40.25 in (1022 mm)
|
| Weight: 18" | 380 lb (172 kg)
|
| Weight: 24" | 398 lb (181 kg)
|
