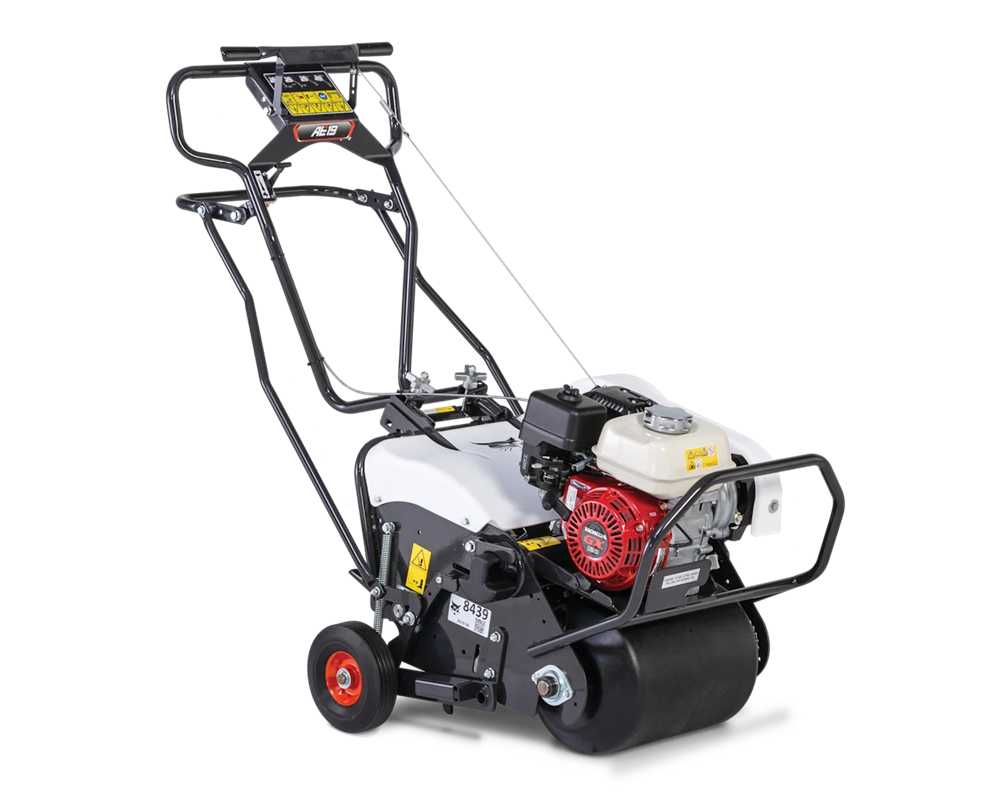

Ryan / Bobcat AE19 with EST
The AE19 is the smallest aerator in the Ryan / Bobcat turf renovation lineup, making it a great machine for highly landscaped areas.
- With Easy-Steer technology, the Bobcat® AE19 maneuvers around highly landscaped areas quickly and efficiently. Designed to rotate independently while driving, the innovative tine assemblies allow the AE19 to be steered without removing the tines from the ground – opening a whole new world of productivity.
- 19 in. working width
- 30 hardened alloy steel coring tines
- All operating controls located at the handlebar for convenient and easy operation
- Equipped with Easy-Steer technology
- Toolless folding handle allows aerator to compact for hassle-free storage and transport
Warranty:
Financing available for major purchases! (Items with serial numbers)
Learn more…
Contact your Sales Rep for Fleet Pricing
|
7884852
|
AE19 Walk-Behind Aerator, Honda GX120
7521785 with M6100-P01-C01 engine package
|
0226
|
$6,385.00
|
|
7884855
|
AE19 Walk-Behind Aerator, B&S Vanguard 200
7521785 with M6100-P01-C02 engine package
|
0226
|
$6,385.00
|
All prices, descriptions, and specifications subject to change
without notice. Items may not be exactly as illustrated.
Contact the Lawnmower Hospital today for more information or to make a purchase.
Contact Us
Specifications
| Honda Engine | Honda® GX120
|
| Honda Power | 3.2 hp (2.4 kW)
|
| Honda Displacement | 7.2 cu in (118 cc)
|
| Honda Fuel Capacity | 0.53 gal (2 L)
|
| Honda Oil Capacity | 0.59 qt (0.56 L)
|
| Briggs & Stratton Engine | Briggs & Stratton® VanguardTM 200
|
| B&S Power | 6.5 hp (4.8 kW)
|
| B&S Displacement | 12.4 cu in (203cc)
|
| B&S Fuel Capacity | 0.84 gal (3.3 L)
|
| B&S Oil Capacity | 0.63 qt (0.6 L)
|
| Drive | 4L section V-Belt to jackshaft
#40 nickel-plated chain to tines & drum
|
| Clutch | Belt tightener
|
| Gearbox | 6:1 reduction
|
| Travel Speed | Up to 3.6 mph (5.8 kph)
|
| Aeration Speed | Up to 3.5 mph (5.6 kph)
|
| Tines | 0.75 in (19 mm) diameter coring tines formed from 0.08 in (2 mm) hollow hardened alloy steel
|
| Aeration Width | 19 in (483 mm)
|
| Aeration Depth | Up to 2.75 in (70mm)
|
| Number of Tines | 30
|
| Aeration Pattern | 3.75 in x 7 in (95 mm x 178 mm)
|
| Tine Engagement | Transport lift lever
|
| Productivity | Up to 29,000 sq ft/hr (2,694 m2/hr)
|
| Weight Configuration | (2) 18 lbs (8 kg) removable weights
4.5 gal (17.0 L) capacity water drum weighing an additional 36 lbs (16.3 kg) at capacity
|
| Frame | Welded 7-gauge steel
11-gauge steel tubing
|
| Drum | 11 in (279 mm) diameter water-fillable drum
|
| Wheels | (2) 8 in x 2.25 in semi-pneumatic transport wheels
|
| Length | 53.5 in (1,359 mm)
|
| Width | 28 in (711 mm)
|
| Height | 48.8 in (1,240 mm)
|
| Weight | 260 lbs (118 kg)
|
| Weight: Water in Drum | 295 lbs (134 kg)
|
