A top-mounted hand crank controls the tine depth. Maximum depth is 8".
The 33" Tiller can be narrowed to 28" or, with four extra tines, it can be widened to 38".
Due to its size and weight, the HD Tiller has a 3-bolt mounting flange.
A 3-bolt 750 Bushing is required to mount the HD Tiller to Model 750's unique integrated Tang. Model 750 Tractors come with one 3-bolt bushing.
The Transport Wheel is highly recommended for this heavy attachment. HD Tillers include on-board Transport Wheel storage.

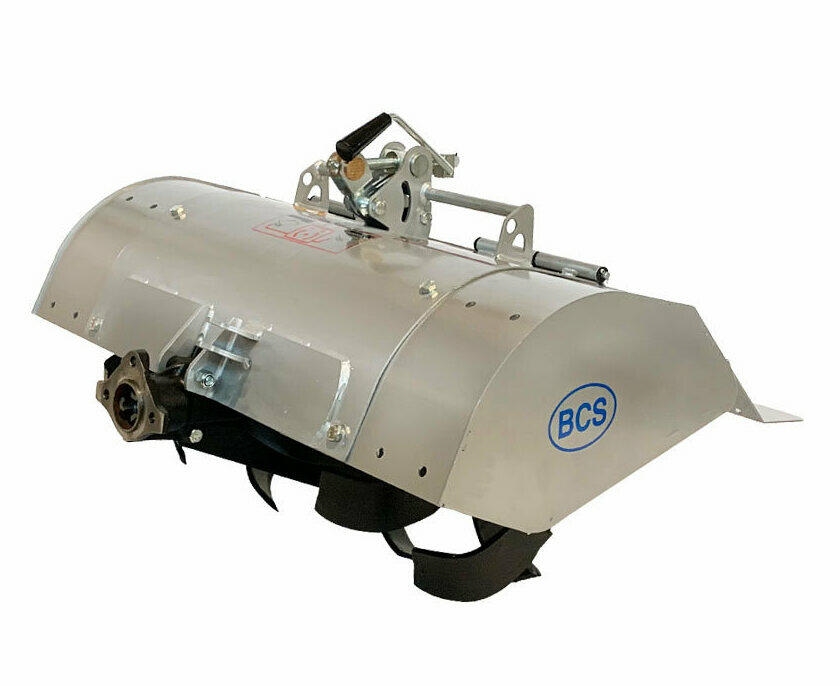

Tipping the scale at almost double the weight of the 30” standard tiller attachment, the 33” model boasts large, heavy-duty everything.
- he time saved by this increased productivity in both seedbed preparation and cultivation makes this model a logical choice for commercial users.
- A unique characteristic of this tiller is that it can only be accommodated by one BCS tractor – model 750. This is mainly due to the increased weight of the 33" tiller, which the 750 tractor compensates for with a heavy-duty cast-iron mounting flange. Model 750 also has an optional transmission weight kit that mounts between the engine and wheel axle that adds an additional 76 lbs to the tractor; thereby helping to counterbalance the weight of the tiller when turning at the end of row.
- Adjustable widths: 33” can narrow to 28'' or widen to 38” (by adding 4 tines, sold separately).
- In 1st gear, tines rotate 50% faster than competitive brands at a rate of 20 rotations per wheel revolution for superior seedbed preparation.
- In 2nd gear, tines rotate 10 times per rotation of the wheel for superior cultivation.
- Planar wedge in center of tiller breaks up center soil, leaving no un-tilled strip down the middle.
- For safe operation, a PTO-lockout device prevents the tines from spinning when the tractor is shifted into reverse.
- Infinite tine depth settings adjusted by crank, maximum of 8'' tilled depth.
Financing available for major purchases! (Items with serial numbers)
Learn more…
Contact your Sales Rep for Fleet Pricing
|
921C0001
|
33" Tiller Attachment
|
1023
|
$3,149.95
|
All prices, descriptions, and specifications subject to change
without notice. Items may not be exactly as illustrated.
