Hustler Raptor FlipUp

Hustler Turf announces the revolutionary Raptor Flip-up.

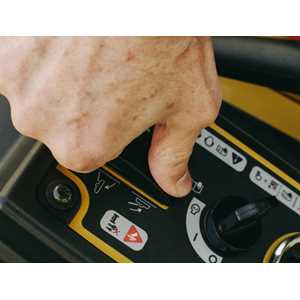

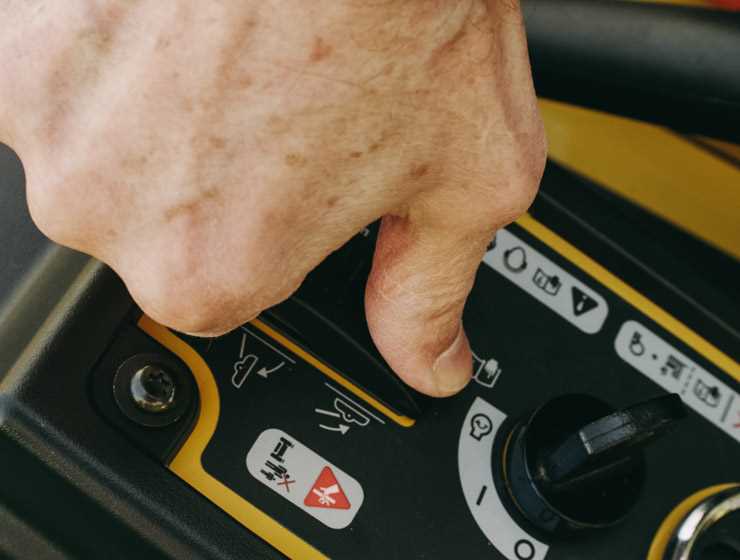

  • Push Button Deck Raise/Lower for Easy Cleaning and Maintenance

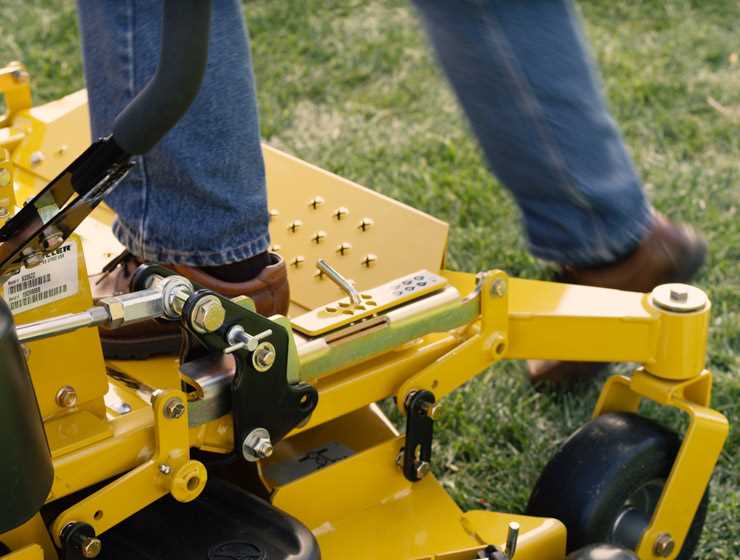

  • Push Button Deck Height Adjustment-1.5” to 4.5
  • Kohler Pro Performance Package 7000 Series Engine w/Smart Choke*—3 year warranty
  • 20” Drive Tires
  • Hydro-Gear ZT2800 Transmission—up to 7 mph
  • Heavy Duty 1.5” x 1.5” Tubular Steel Frame
  • 3 US Gallon Fuel Tank
  • 11 Gauge Fabricated Steel Deck
  • 7 Gauge Frame Rails

Warranty:

  • 3 year / 300 hour limited warranty
Contact your Sales Rep for Fleet Pricing
933614 Husler Raptor Flip Up, Kohler 7000 Pro 25 Hp 48" 0317 $6,999.00
933622 Husler Raptor Flip Up, Kohler 7000 Pro 25 Hp 54" 0317 $7,299.00

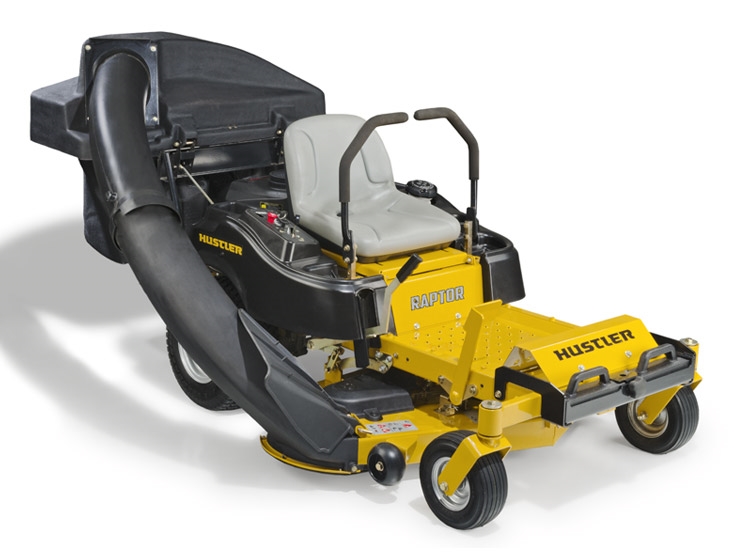

933804 Catcher 2 Bag 0317 $897.00
119101 48" Mulch Kit 0317 $210.00
119060 54" Mulch Kit 0317 $223.00

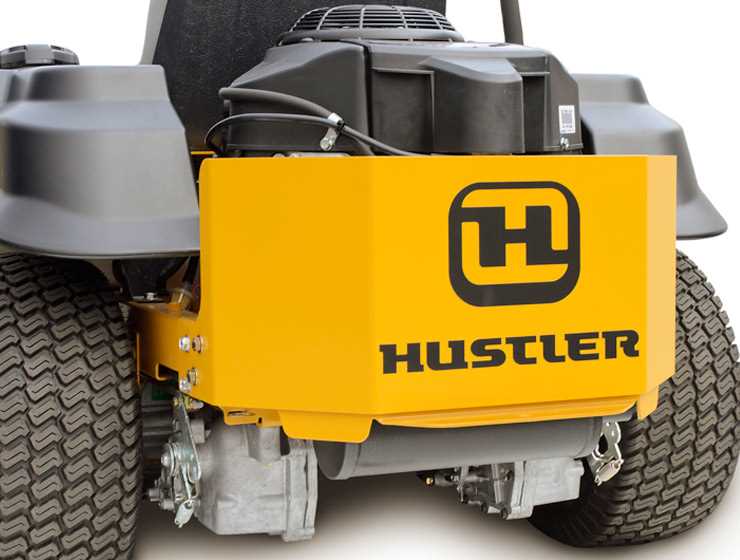

121696 Engine Guard Kit (Not compatible with Catcher Kit) 0317 $107.00
605677 Kit, Flex Forks 0317 $398.00
121505 Kit, Light 0317 $278.00
333724 Kit, Steering Extension 0317 $138.00

All prices, descriptions, and specifications subject to change without notice. Items may not be exactly as illustrated.

Specifications

Engine
ManufacturerKohler
Hp25Hp - Kt740 - With Smart Choke And Pro Performance Package * Per Sae J 1995
Displacement725 cc
CoolingAir Cooled
Engine Warranty3 Year
Drive System
TypeDual Hydrostatic
TransmissionHydrogear ZT 2800
Speed7 Mph
Parking BrakesPatented Automatic
Decks
Cutting Width48”, 54”
Cutting Heights1.5”-4.5”
Deck LiftElectric/Hydraulic Actuated
Depth4.4”
Blades3
Blade Length48” Deck: 3 - 16.5” X 2.5” X .203”
54” Deck: 3 - 18.5” X 2.5” X .203”
SpindlesAluminum w/ 1” Shafts And Sealed Ball Bearings With Triple Protection Seals
DriveElectric PTO Clutch
Construction11 ga. Fabricated
Spindle MountsReinforced 7 ga.
Impact/Trim Areas 3/8” X 1” Steel Bar
Construction
Deck Carrier Frame1.5” X 1.5” X .120” Steel Tubing
Eng. / Trans. Frame7 Gauge Frame Rails
Front AxleFabricated W/ Sealed Ball Bearings
Front Caster WheelsCommercial Duty Steel Roller Bearings, Greasable
Front Caster ForksFabricated 1/4” Steel
General
SeatPremium bolstered with Armrest
Fuel Capacity3 Gal.
Cup HolderYes
Front Tire9” X 3.5” Semi Pneumatic
Drive Tire48” Deck: 20 X 8 - 10
54” Deck: 20 X 10 - 10
Dimensions
Weight48” Deck: 750 Lbs
54” Deck: 765 Lbs
Height42.7”
Length69.4”
Width48” Deck: 49”
54” Deck: 55”
Tire Width43.7”
Productivity*
Acres Per Hour48” Deck: 2.71
54” Deck: 3.01
* Number based on 80% efficiency. This rating is to account for actual mowing conditions including overlapping, turning and terrain.
